STEALTH SERIES

DF350AMD STEALTH

DF350AMD STEALTH

Suzuki Marine's new Stealth Line now offer more of the innovative technology and uncompromising power with sleek new matte black style.

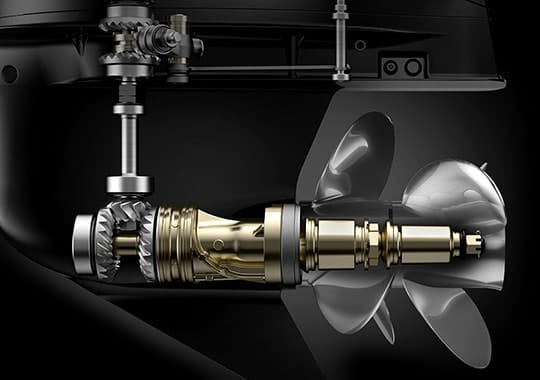

Dual Prop

The Dual Prop system efficiently turns engine's output into propulsion under water.

As an added benefit, because each propeller rotates in a different direction, exceptional stability is achieved. In addition, the contra-rotating propellers produce a strong reverse thrust.

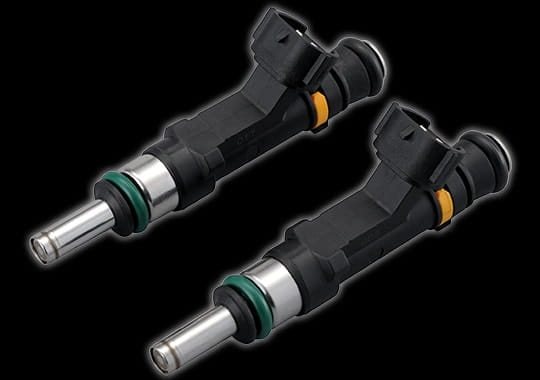

Dual Injector

Efficient combustion and suppression of knocking are necessary to produce more power.

Suzuki achieved efficient combustion with optimal fuel injection by adopting the Dual Injector and with optimum combustion chamber configuration.

Further, the Dual Injector atomizes the fuel to enhance the cooling action in the combustion chamber and suppress knocking.

In fact, Suzuki has succeeded in increasing the output by 3%.

DURABILITY & RELIABILITY
  • Self-adjusting Timing Chain
  • Dual Water Inlet
  • Suzuki Anti-corrosion Finish
  • Suzuki Water Detecting System
  • Suzuki Dual Louver System
  • Tilt Limit System
  • SDSM
PERFORMANCE
  • Offset Driveshaft
  • VVT (Variable Valve Timing)
  • 2-stage Gear Reduction
  • Suzuki Dual Prop System
EASE & COMFORT
  • Suzuki Precision Control
  • Suzuki Troll Mode System
  • Easy Start System
  • Automatic Trim*
ECOLOGY & ECONOMY
  • Lean Burn
  • Dual Injector

MODEL DF350AMD
RECOMMENDED TRANSOM HEIGHT mm (in.) L: 508, X: 635, XX: 762
STARTING SYSTEM Electric
WEIGHT kg *1 L: 345, X: 352, XX: 360
ENGINE TYPE DOHC 24-Valve
FUEL DELIVERY SYSTEM Electronic Fuel Injection
NO. OF CYLINDERS 6
PISTON DISPLACEMENT cm3 (cu.in.) 4,390
BORE × STROKE mm (in.) 98 x 97
MAXIMUM OUTPUT kW (PS) 257.4
FULL THROTTLE OPERATING RANGE rpm 5,700-6,300
STEERING Remote
OIL PAN CAPACITY Lit. 8.0
ALTERNATOR 12V 54A
ENGINE MOUNTING Shear Mount
TRIM METHOD Power Trim and Tilt
GEAR RATIO 2.29:1
GEAR SHIFT F-N-R
PROPELLER SELECTION (Pitch)*2 All propellers are the 3-blade type 12
CONTROL SYSTEM Drive-By-Wire
  1. Dry weight: not including propeller and engine oil
  2. Please inquire at your local dealer for details of the propeller
  3. Counter Rotation Model Available

The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
