STEALTH SERIES

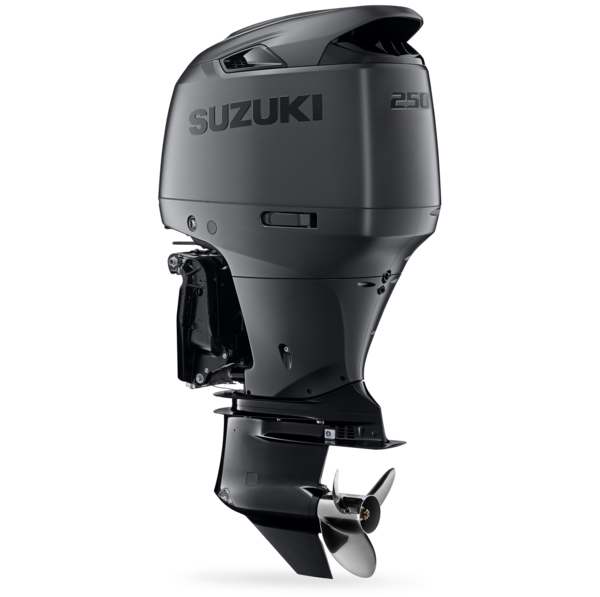

DF250AU STEALTH

DF250AU STEALTH

Suzuki Marine's new Stealth Line now offer more of the innovative technology and uncompromising power with sleek new matte black style.

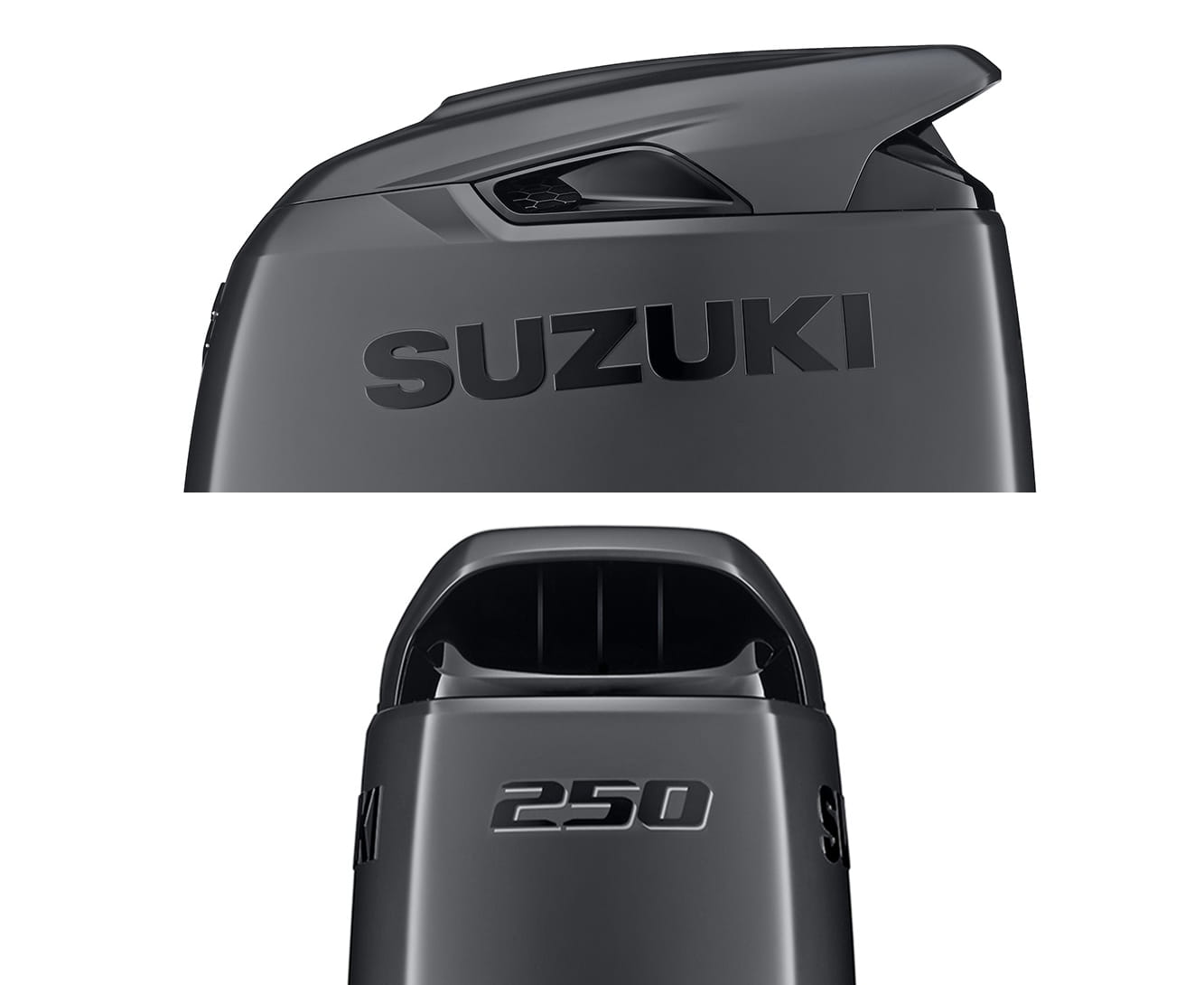

New Engine Cover Design

Engine top cover, Air intake louver, Engine upper cover grip, Engine cover louver and decals have been newly designed.

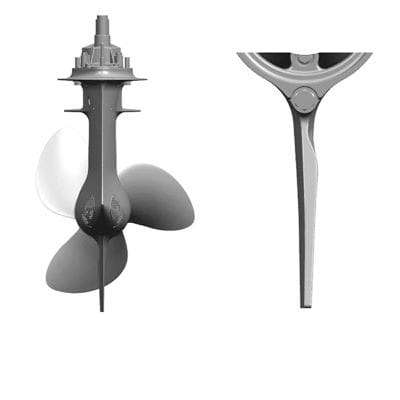

Stealth Performance Lower Unit

The profile of the gear case (front), the location and the profile of the water filters have been changed to improve cruising performance and to prevent cavitation.

Left-right asymmetry brings better steering stability.

Suzuki Selective Rotation

Normally, when using multiple outboards a combination of standard and counter-rotating engines is mounted. The Suzuki Selective Rotation, available on our AP series outboards, eliminates the need for different models, as any model can be easily programmed to run in either direction. The DF350A’s contra-rotating propeller technology takes this process one step further by eliminating steering torque and maximizing true and straight propulsion forces.

DURABILITY & RELIABILITY
  • Self-adjusting Timing Chain
  • Dual Water Inlet
  • Suzuki Anti-corrosion Finish
  • Suzuki Water Detecting System
  • Tilt Limit System
  • SDSM
PERFORMANCE
  • Offset Driveshaft
  • VVT (Variable Valve Timing)
  • 2-stage Gear Reduction
EASE & COMFORT
  • Suzuki Selective Rotation
  • Suzuki Precision Control
  • Suzuki Troll Mode System
  • Easy Start System
  • Automatic Trim*
ECOLOGY & ECONOMY
  • Lean Burn

MODEL DF250AUN
RECOMMENDED TRANSOM HEIGHT mm (in.) L: 508, X: 635
STARTING SYSTEM Electric
WEIGHT kg *1 L: 283, X: 289
ENGINE TYPE DOHC 24-Valve
FUEL DELIVERY SYSTEM Electronic Fuel Injection
NO. OF CYLINDERS 6
PISTON DISPLACEMENT cm3 (cu.in.) 4,028
BORE × STROKE mm (in.) 98 x 89
MAXIMUM OUTPUT kW (PS) 184
FULL THROTTLE OPERATING RANGE rpm 5,700-6,300
STEERING Remote
OIL PAN CAPACITY Lit. 8.0
ALTERNATOR 12V 54A
ENGINE MOUNTING Shear Mount
TRIM METHOD Power Trim and Tilt
GEAR RATIO 2.08:1
GEAR SHIFT F-N-R
PROPELLER SELECTION (Pitch)*2 All propellers are the 3-blade type 15-27
CONTROL SYSTEM Drive-By-Wire
  1. Dry weight: not including propeller and engine oil
  2. Please inquire at your local dealer for details of the propeller
  3. Counter Rotation Model Available

The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
